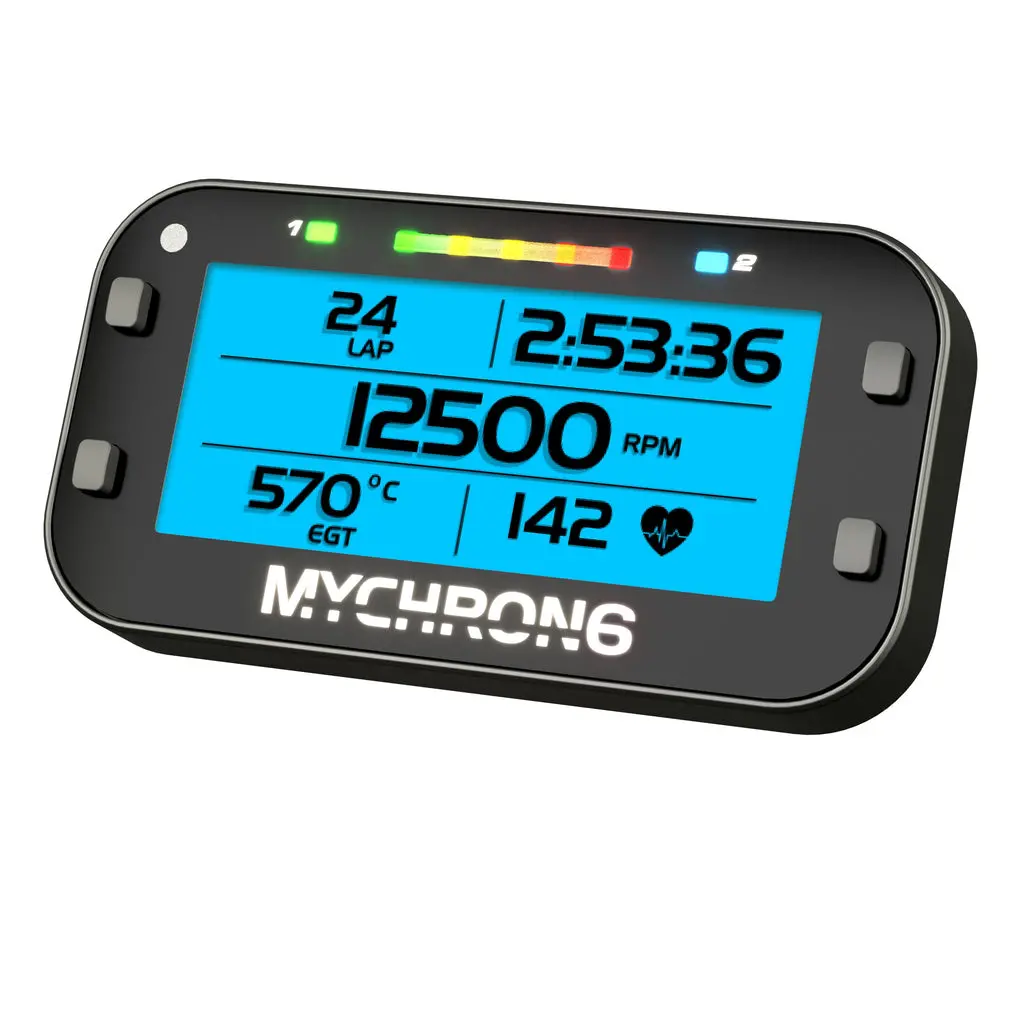

RaceLogic Mychron 6 Data Logging System

Description

The ultimate racing go kart data logger has arrived! Rev up your racing game with the new and improved AiM MyChron 6 Data Logger. Specifically crafted for avid kart racers seeking to boost their performance, this advanced logger boasts innovative GPS technology, superior lap timing, customizable displays, and seamless integration with Race Studio 3 for top-notch data management.

New in MyChron 6

• The MyChron 6 now boasts an improved 20-hour battery life, doubling the 10-hour battery life of the MyChron 5. This allows for extended racing sessions without frequent recharges.
• Integrated Bluetooth for connection to smart watches to monitor heart and health vitals.
• Improved GPS accuracy with GPS09, further improving data collection
• The visual on-screen Delta Lap Timer function allows drivers to instantly view sector times and compare laps more effectively, helping refine racing lines and shave seconds off lap times.
• The MyChron 6 features a larger screen measuring 150 x 79 x 36.6mm, compared to the MyChron 5’s 137 x 88 x 30mm display. This wider display allows for clearer data presentation and enables an exclusive on-screen delta bar animation, which provides real time graphical feedback comparing your current lap time to your best.
• The USB Type-C port ensures faster downloads and rapid charging, making data transfer between the device and your laptop, phone or tablet even more efficient.

Whats in the Box

• Mychron 6 with GPS working at 25 Hz
• A choice of Water, Under Plug CHT or EGT temp sensor
• RPM Lead

Display Graphical    Display resolution 320×136 pixels    Backlight 8 configurable RGB colors    Shift lights/alarm LEDs 5 + 2 configurable RGB LEDs    Integrated track db Yes    Wi-Fi connection Yes     Bluetooth connection Yes    GPS 25 Hz    External power 9÷15 V    CAN connections 2    Connectors 1 Binder 712 fem 3 pins connector 1 Binder 712 fem 8 pins connector 1 Binder 712 fem 5 pins connector 1 Binder 712 fem 7 pins connector 1 Binder 712 fem 8 pins connector 1 Binder 712 fem 5 pins connector    USB connection For data download, mass storage support and battery charge    Temperature inputs 1 2    Inertial platform 6 axis, frequency 50 Hz    Digital inputs Optical lap signal, Magnetic lap signal    External modules MyChron Expansion, IR Temperature Controller, SmartyCam 3 Series, LCU1S    Memory 4 GB    Internal battery type Rechargeable Lithium    Battery life 20 h approx.    Body PA6 GS30%    Dimensions 152.0 x 81.0 x 37 mm    Weight 370 g    Waterproof IP67
