Description
- Fits K20 and K24 Engines
- Allows for Dry Sump Oiling Drive Gear Mounting
- 5.5-inch outer diameter
- Approved for NHRA and IHRA Competition
- Description
- Vehicle Fitment
- Technical Data
- Install Guide
-

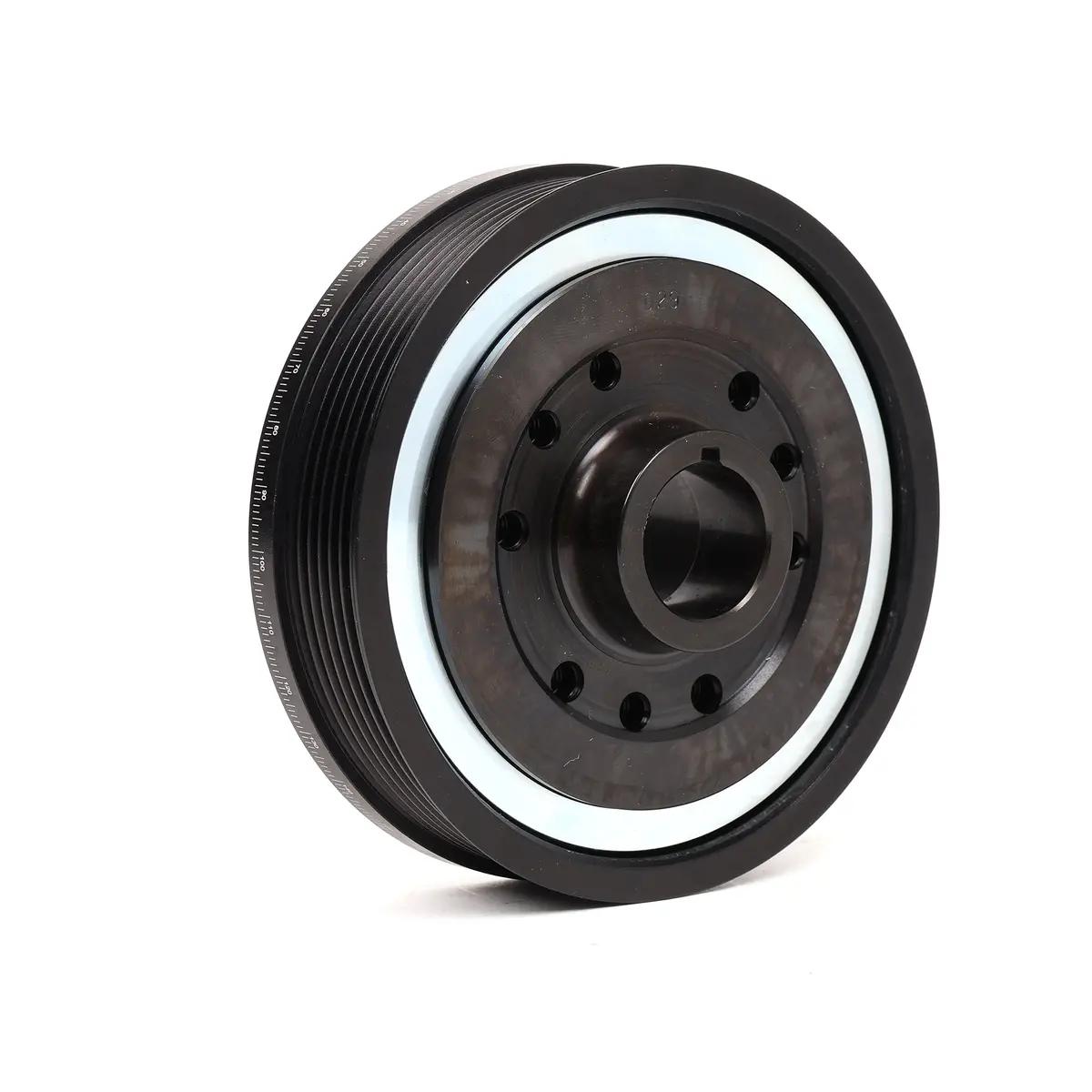

ATI Super Damper for Honda/Acura K Series Engines
Put every last bit of crank-harmonic anxiety to rest with the ATI Super Damper for Honda/Acura K Series Engines. Engineered, machined, and SFI 18.1-certified in the USA, this two-piece steel hub/aluminum shell damper uses ATI’s proven elastomer ring technology to cancel torsional vibration across the entire rev range of your K20 or K24. The result: smoother power delivery, extended bearing life, and the confidence to spin past 9,000 rpm without fear of pulley walk or accessory-belt carnage.
Why it matters
- Street or strip ready – Part #918477 retains the factory six-rib serpentine layout and adds 360° laser-etched timing marks for painless cam tuning.
- Race-day adaptability – Outer shell accepts a dry-sump drive gear (sold separately) so you can upgrade oiling without swapping dampers.
- Perfect 5.67″ diameter for K20A2/K20Z3; functions as a mild under-drive on larger-pulley K24s and as an over-drive on the smaller K20Z1, giving you freedom to fine-tune accessory speed with belt choice.
- SFI-approved for NHRA & IHRA competition—bolt it on once, pass tech forever.
- Built to last – fully rebuildable, with service kits and replacement elastomers available directly from ATI.
Vehicle coverage
Direct fit for 2002-11 Civic Si, 2002-06 RSX, 04-08 TSX, 03-07 Accord, 02-11 CR-V, 03-11 Element, 07-10 CSX, and any other K-series swap using the factory crank bolt pattern.
Installation Snapshot
Intermediate, 1–2 hrs; damper, hub, and mounting hardware included; no ECU tune or cutting required (check belt length if changing pulley ratio).
- 2007-2010 Acura CSX Type S
2002-2006 Acura RSX Base/Type-S2004-2008 Acura TSX2003-2007 Honda Accord (K24)
2002-2015 Honda Civic Si2002-2006 Honda CR-V2003-2011 Honda Element - Diameter: 5.5 inchesConfiguration: 2 RingHub Material: SteelTotal Weight: 3.60 lbsInertial Weight: 2.20 lbsTiming Marks: 360° laser-etched
- Ensure the engine is cool before installation. Remove the old damper and replace it with the ATI Super Damper. Tighten to manufacturer’s torque specifications.
